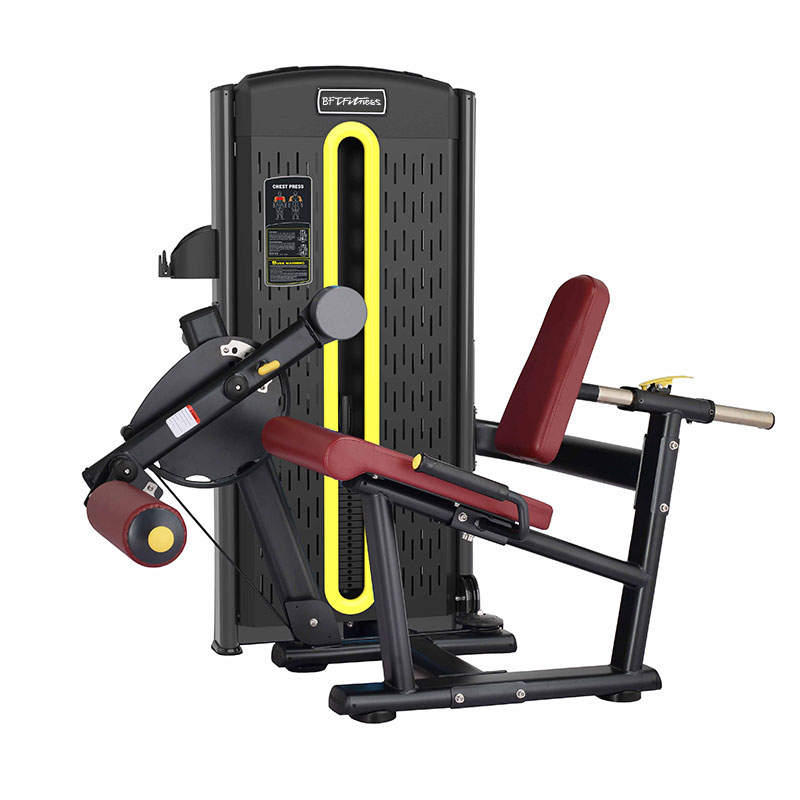

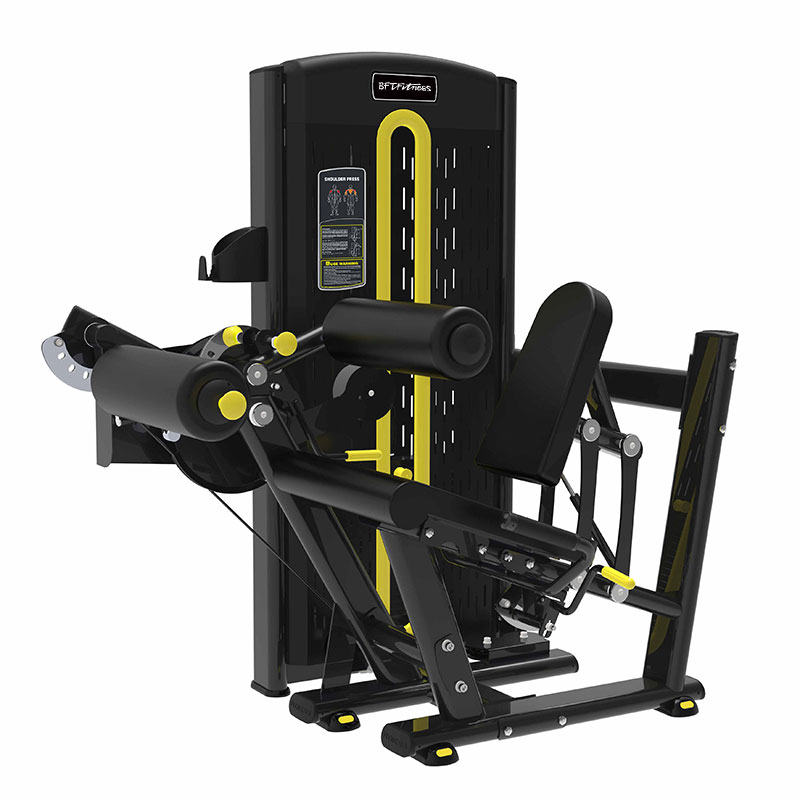

Leg Extension/Leg Curl

Model : BFT-D05

The BFT-D05 is a commercial leg extension & leg curl bifunctional trainer. It is a special product for exercising the quadriceps and biceps femoris. Luxurious and fashionable.

Sit in a guided trajectory, bend your knees, and exercise the muscles in the back of your legs without touching your lower back. Weights impart resistance, allowing the proper load to be adjusted to each individual's needs.

♦ Prevention and care of knee joint and muscle problems.

♦ Improves muscle elasticity and leg function.

+86-20-36078553
+86-18027318690
admin@bft-fitness.com

Weight Stack and Guide Rod

High-quality stainless steel weight stack, with shock-absorbing plastic pads between each weight stack, can effectively reduce the noise of collisions.

Users can quickly adjust the weight by using the guide rod according to their own conditions.
There is a magnetic steel ring on the inside of the guide rod head to prevent vibration and fall, bringing an extraordinary safety experience.

Seat Cushion Adjustment and Seat Cushion Material

The seat cushion height adjuster uses an advanced atmospheric compression spring, allowing you to easily and quickly adjust the position.

Made of PV or PU high-quality leather, a variety of colors are available (usually black, red, brown), the surface is wear-resistant, high-density, anti-leg color.

Hand Grip

The handle is made of aluminum alloy, which has the functions of heat resistance and corrosion resistance.

Belts and Pulleys

The pulley is made of nylon mixed with glass fiber, which has low friction coefficient, wear resistance and self-lubricating property.

Combined with steel kinematic bearings, force transmission is silky smooth!

Wire rope

The outer layer is made of high-grade wear-resistant and environmentally friendly PU leather, and the inner layer is 7 strands of stainless steel wire, which is super durable and safe.

Technical Specifications

Main tube	Flat elliptical tube 120503.0mm、100502.5mm & 80402.5mm，round tube 60mm
Gantry frame	Rear cover & Front cover: 3mm metal casing; Head cover: ABS material;
Hand Grips	Iron core with diameter of 32mm, outer layer of PU anti-slip gloves, both ends are equipped with aluminum alloy decorative covers
Lifting rod	25mm diameter hard chromium steel
Instruction icon	Size: 300*800mm; Material: PVC; Product instruction icon, detailing product training parts, operating instructions and precautions
Load accessories	Stainless steel guide rod: diameter 25*1.5mm; Pulley: Hardened integrated PP pulley or aluminum alloy; Steel wire rope: 7-core imported steel wire with an inner diameter of 5.8mm, the maximum use load is 220 KG
Counterweight device	Guide Rod：With magnetic aluminum alloy head; Weight Stack：Cold drawn steel Q235 with cushion & Imitation noise buffer pad
Cushion	Three-layer material structure, bottom iron plate, open mold silicone pad, imitation ground PU leather
Seat	Flat tube 80402.0mm stainless steel configuration
Bearings	Luoyang LYC or imported high-speed bearings

Size	1360950500mm
GW/NW	242KG/227KG
Weight	steel 100kg Q235
Function & Muclse	Hamstring , gastrocnemius ,quadriceps femoris muscle
Fit area	Professional gym and club
Seat color	red, brown, yellow, black PU/PVC/ leather
Port	GuangZhou HuangPu port
Packaging Details	1) wooden case with assemble package 2) plateform with unassemble package 3) assemble package with EPE foma and bubble film
Delivery Detail	Stock available within 7 days , No stock 15days-30days
