Dismantling Spinning Bike - What does it look like?

Dismantling Spinning Bike Photo.


spinning bike

Do not know Chinese? Don't worry, there is an English version here.
commercial spin bike

I almost couldn’t recognize the outer shell.


spin bike without sheel

It looks like a nestling without hair.

spin blke

Can adjust up and down and back and forth

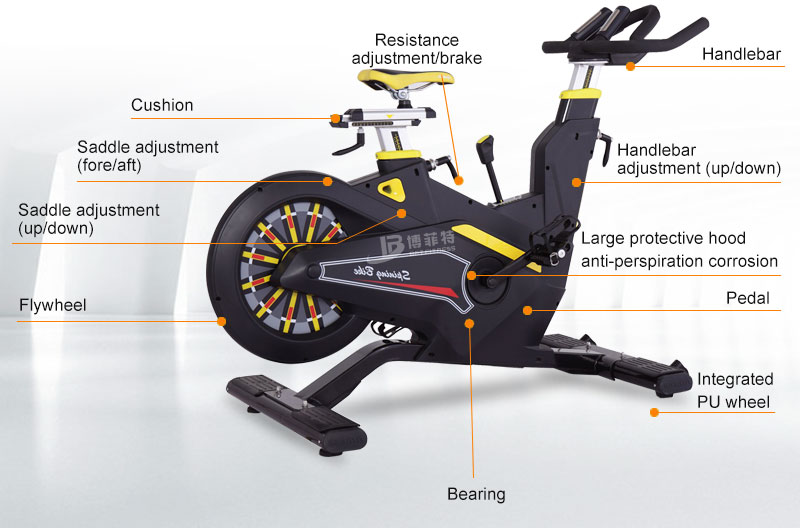

saddle

Flywheel

Pedal

Belt drive


Frame The main frame is simplified, fashionable, firm and durable, made of flat oval tubes (50*120).
Driving mode Belt drive/Chain drive
Flywheel The magnetic control flywheel made of new technique never gets rusty; its perfect smoothness ensures that the loss of brake system can be reduced to a minimum.
Resistance system Magnetic Resistance System
Resistance adjustment Adjustment lever (-5-level)
Shaft
Material: quality alloy steel
Diameter: 25mm
Bearing block assembly Removable bearing assembly
Handlebar
Surface: Dip molded PVC (pitted surface/smooth surface)
Color: Red/Black
Saddle Taiwan brand
Bearing Top heavy-duty bearing in China.
Biomechanical feature It’s suitable for all fitness levels and users with any body shapes (from females with somatotype 5% to males with somatotype 95%)

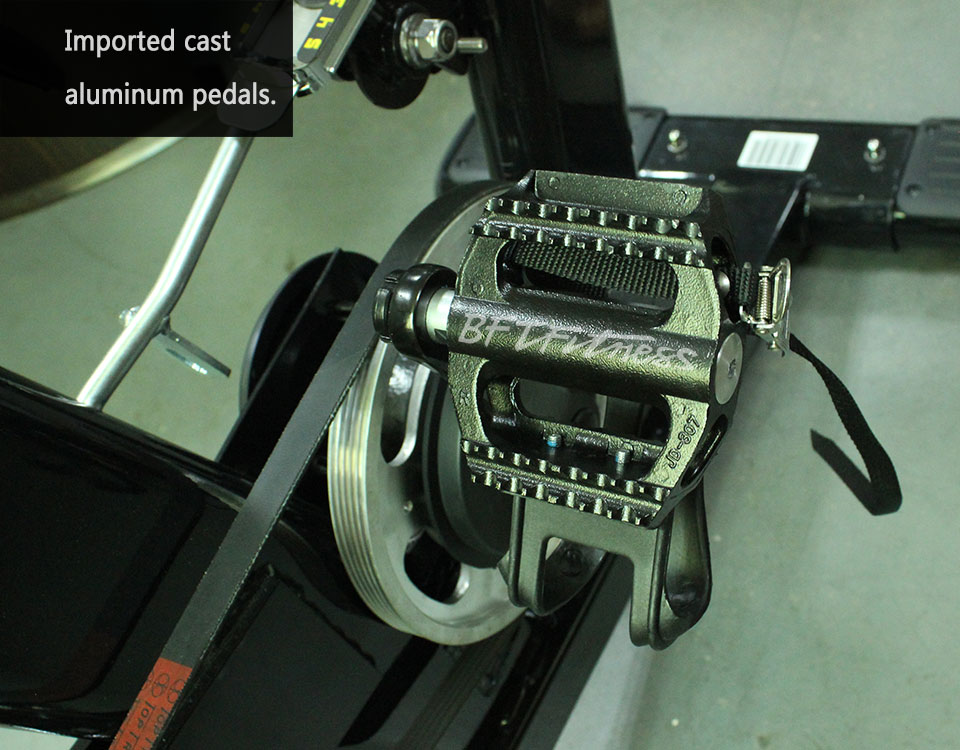

Pedal Imported cast aluminum pedals.
Saddle post and Handlebar post Material: quality aluminum alloy
Touch screen Resistance Level, Distance, Speed, Calories, Workouts (Riding scenes), Music, Videos, USB files
Intelligent features QR Code scanning after singing into WeChat; Member Registration and login; Cloud storage; Performance ranking of members; Riding scenes.
Transport wheel Integrated PU wheel.
Labels Material: PVC
Water bottle holder N/A
Power source External power supply; AC 220V±10% (50Hz/60Hz)
Power cord 16A AC 250V
Frame color
Black (standard)
Matt black (optional)
Max user weight 150 KG
Handlebar adjustment range (up/down) 160 MM
Max handlebar height 1100 MM (above the floor)
Saddle adjustment range (up/down) 190 MM
Saddle adjustment range (fore/aft) 110 MM
Max saddle height 1170 MM (above the floor)

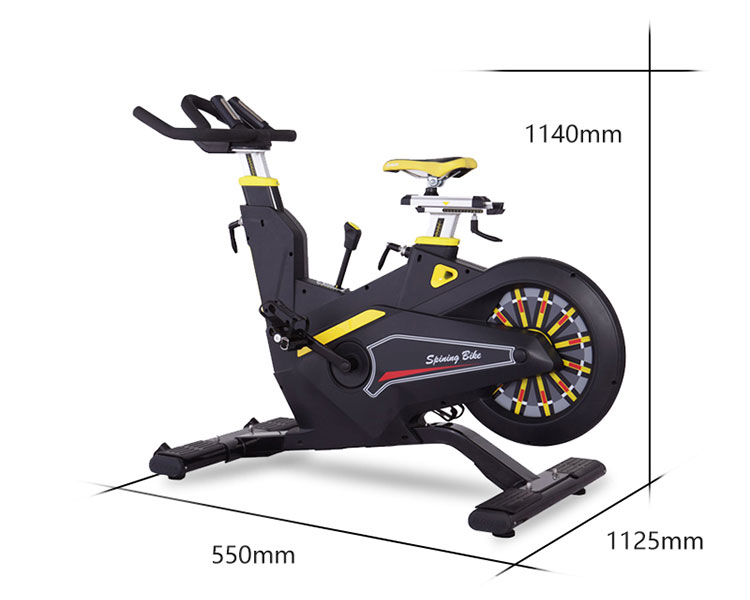

Unit dimensions 1665mm×705mm×1445mm
